NV40 antialiasing sample patterns - Page 3

pat777 · 06-27-04, 09:58 AM

http://www.3dcenter.de/artikel/nv40_...rks/index6.php

OMG, the NV4x has 16x SSAA. Can you test it, ChrisRay? It's only usable in D3D.

anzak · 06-27-04, 10:01 AM

Quote:

Originally Posted by pat777

http://www.3dcenter.de/artikel/nv40_...rks/index6.php

OMG, the NV4x has 16x SSAA.

but 16x SSAA is overkill and useless in games.

fivefeet8 · 06-27-04, 12:19 PM

Quote:

Originally Posted by anzak

but 16x SSAA is overkill and useless in games.

It might be useable in old PC games and of course emulated games.

991060 · 06-27-04, 12:39 PM

Has anyone enabled this 4S4M pattern?

ChrisRay · 06-27-04, 01:50 PM

Quote:

Originally Posted by pat777

http://www.3dcenter.de/artikel/nv40_...rks/index6.php

OMG, the NV4x has 16x SSAA. Can you test it, ChrisRay? It's only usable in D3D.

As I said, The old 16x is there but is only supportedwithin OpenGL. But the OGSS pattern is only functional in Direct3d.

Quote:

Has anyone enabled this 4S4M pattern?

Yup. It's the new 16x. It only appears functional in Direct3d. I am adding the results today. I just hadnt got around to it yet. As I was testing its functionality yesterday. I wanted to be able to have a conclusion by the time I uploaded it.

pat777 · 06-27-04, 02:18 PM

Quote:

Originally Posted by ChrisRay

As I said, The old 16x is there but is only supportedwithin OpenGL. But the OGSS pattern is only functional in Direct3d.

Hmm, According to 3Dcenter the new 16x is pure supersampling. Is the site wrong? So basically 16x pure SS is unusable?

991060 · 06-27-04, 02:24 PM

Quote:

Originally Posted by ChrisRay

Yup. It's the new 16x. It only appears functional in Direct3d. I am adding the results today. I just hadnt got around to it yet. As I was testing its functionality yesterday. I wanted to be able to have a conclusion by the time I uploaded it.

Is it appeared as a selectable option in the new forceware driver, or need registry hack?

ChrisRay · 06-27-04, 02:29 PM

Quote:

Originally Posted by 991060

Is it appeared as a selectable option in the new forceware driver, or need registry hack?

Need a Registry hack to activate it currently. Most of these modes need a registry hack to enable. Problem is they are difficult to enable with current riva tuner. Once I get some feedback from undwinder. I hope to be able to show everyone how to enable every mode.

This mode is beautiful. I am adding the results and conclusion to it within the hour.

Chris

P.S. The Control Panel However does recognise the mode like it did the old 16x

ChrisRay · 06-27-04, 02:47 PM

Update. Nvidias new 16xS has been included in the review. The Image Quality absolutely amazing. Be sure to check out the Unreal Tournament 2003 shot running 16XS AA/16xAF

It sharpens the textures and provides un challenged edge removal to anything I have ever seen to this date.

Chris

tb77 · 06-27-04, 03:35 PM

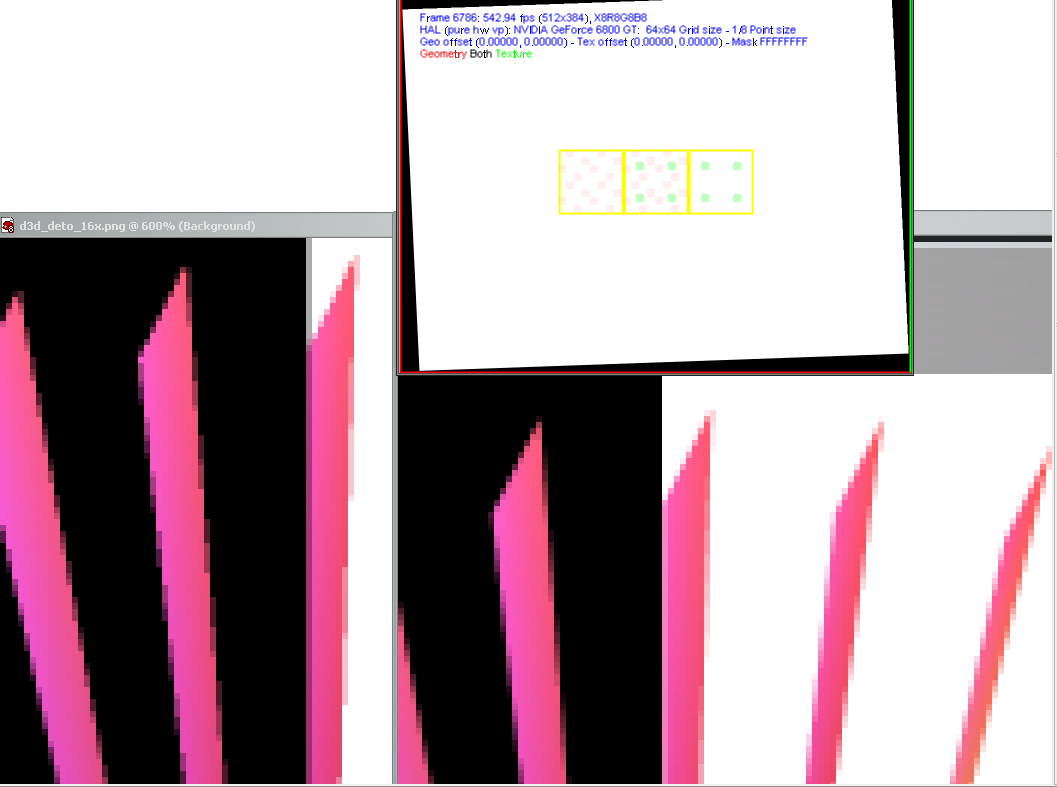

Have tried this 16x mode, left gffx, right gf6?

Thomas

ChrisRay · 06-27-04, 03:49 PM

Quote:

Originally Posted by tb77

Have tried this 16x mode, left gffx, right gf6?

Thomas

I am going to enable it for my Geforce FX 5900 and see how the same pattern compares.

I have a feeling I have seen the 16x mode on the 5900. And its broken

fivefeet8 · 06-29-04, 12:31 PM

Ok... I've got the new Rivatuner. How do I enable the 16xS mode? Can we just edit the rivatuner config again?

06-27-04, 09:58 AM	#25
pat777 NV420 Join Date: May 2003 Posts: 446	Re: 6800 Series Anti Aliasing Sample patterns http://www.3dcenter.de/artikel/nv40_...rks/index6.php OMG, the NV4x has 16x SSAA. Can you test it, ChrisRay? It's only usable in D3D. Last edited by pat777; 06-27-04 at 10:21 AM.

06-27-04, 12:39 PM	#28
991060 Whiz Kid Join Date: Aug 2003 Location: Beijng,China Posts: 241	Re: 6800 Series Anti Aliasing Sample patterns Has anyone enabled this 4S4M pattern?

06-27-04, 02:47 PM	#33
ChrisRay Registered User Join Date: Mar 2003 Location: Tulsa Posts: 5,101	Re: 6800 Series Anti Aliasing Sample patterns Update. Nvidias new 16xS has been included in the review. The Image Quality absolutely amazing. Be sure to check out the Unreal Tournament 2003 shot running 16XS AA/16xAF It sharpens the textures and provides un challenged edge removal to anything I have ever seen to this date. Chris __________________ \|CPU: Intel I7 Lynnfield @ 3.0 Ghz\|Mobo:Asus P7P55 WS Supercomputer \|Memory:8 Gigs DDR3 1333\|Video:Geforce GTX 295 Quad SLI\|Monitor:Samsung Syncmaster 1680x1080 3D Vision\/Olevia 27 Inch Widescreen HDTV 1920x1080 \|CPU: AMD Phenom 9600 Black Edition @ 2.5 Ghz\|Mobo:Asus M3n HT Deluxe Nforce 780A\|Memory: 4 gigs DDR2 800\| Video: Geforce GTX 280x2 SLI Nzone SLI Forum Administrator NVIDIA User Group Members receive free software and/or hardware from NVIDIA from time to time to facilitate the evaluation of NVIDIA products. However, the opinions expressed are solely those of the members

06-27-04, 03:35 PM	#34
tb77 Registered User Join Date: Dec 2002 Posts: 61	Re: 6800 Series Anti Aliasing Sample patterns Have tried this 16x mode, left gffx, right gf6? Thomas __________________ Senior Editor - http://www.tommti-systems.com

06-29-04, 12:31 PM	#36
fivefeet8 Ngemu Mod Join Date: Jul 2003 Location: Fresno, CA Posts: 1,886	Re: 6800 Series Anti Aliasing Sample patterns Ok... I've got the new Rivatuner. How do I enable the 16xS mode? Can we just edit the rivatuner config again? __________________ [i7 2600k @4.4ghertz][2x4 GB DDR3 1600][EVGA GTX570 1.280GB SC][EVGA GTX460 physx][Asrock Extreme7 Gen3 Z68][2xSeagate 160 Gb SATA HD raid0][Seagate 250 GB SATA2 HD][Sony Bravia 40' 1080p LCD HDTV][NEC 3520a DVD+-DLw][Windows 7 Ultimate x64][Rosewill 1000w]
